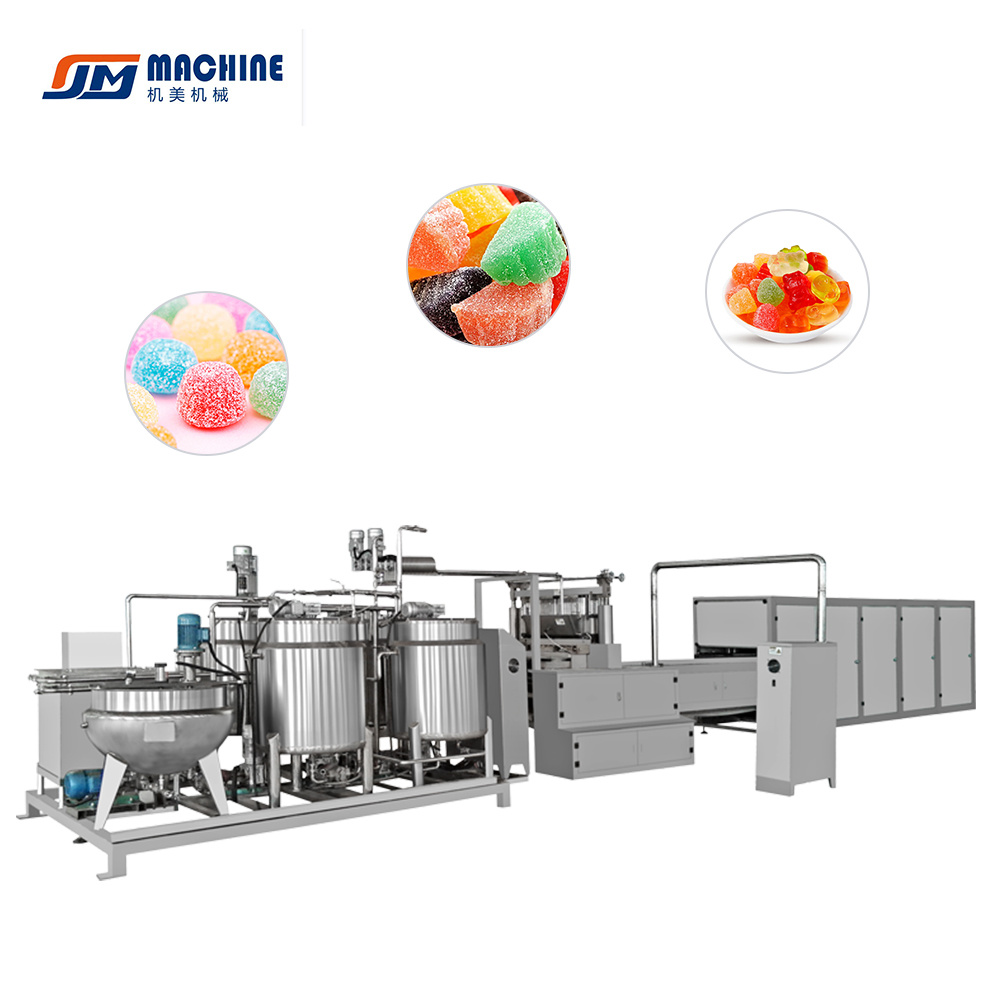

JM hard candy production line

Vacuum sugar boiling temperature and time .pouring temperature and pouring speed are automatically controlled by PLC

Category:

Service line:

Product inquiry：

1.Vacuum sugar boiling temperature and time .pouring temperature and pouring speed are automatically controlled by PLC

2.easy operation with 7'' LED touch screen

3.capacity From 150-600kg/h

4.sugar fluid flow is been controlled by inverter

5.with sanitary design

6.continuous vacuum sugar boiling makes sugar boiling temparature reach the syrup pouring standard

7.Rationed filling and mixing of essence ,pigment and acid solution can be completed on the line

8.conveyor chain and conveyor ensure mold release

9.can make different kind candy as per different mould

10,can make single -color ,double -color .double color flower and double layer candy

11.lollipop can be made after install stick insert device

model	JM-150	JM-300	JM-450	JM-600
Hard candy weight :as per candy shape
pouring speed	25-30n/M	25-30n/M	25-30n/M	25-30n/M
steam requirements	250kg/h.05-0.6mpa	300kg/h,0.5-0.6mpa	400kg/h,05-0.6mpa	500kg/h,05-0.6mpa
compressed air requirements :0.6m³/min,0.4-0.6Mpa,0.2m³/h
